Integrating Jenkins with TestRail

pipeline {
    agent {
        label "linux"
    }
    stages {
       stage('Build') {
          steps {
             echo '********BUILD STEP**********'
             git branch: 'master', credentialsId: '*****', url: 'https://...junit-demo.git'
             sh 'mvn test'
          }
       }
    }
    post {
     always {

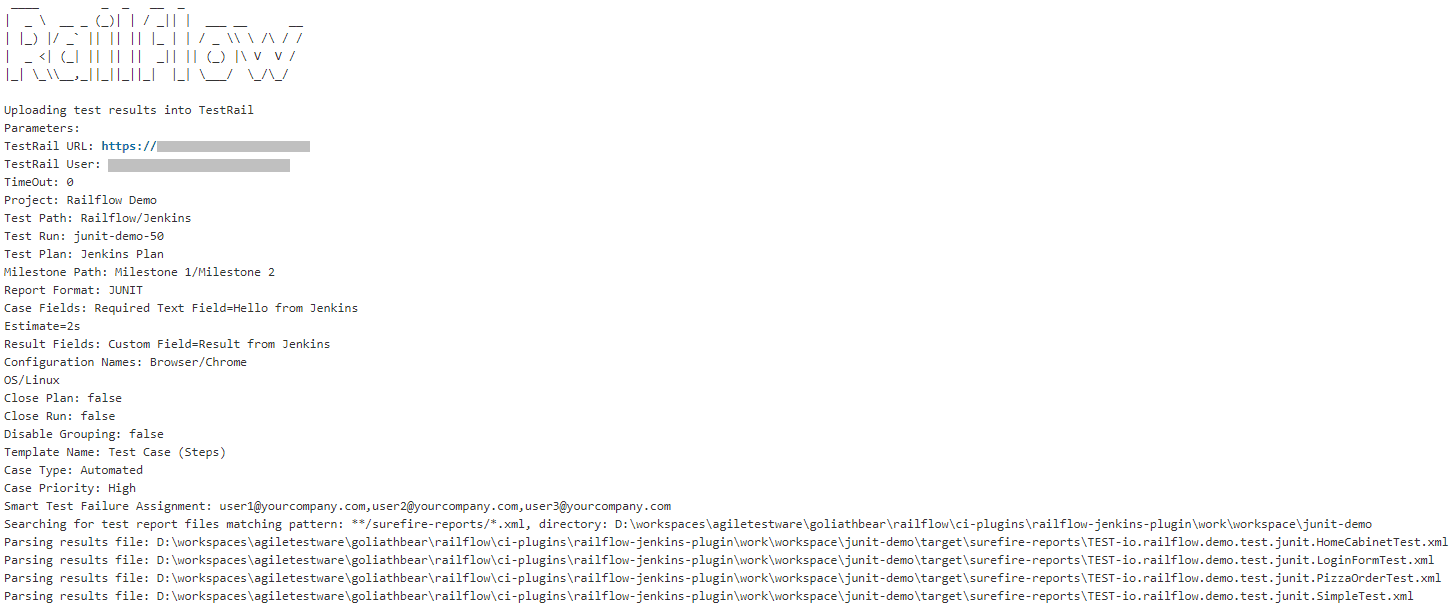

     echo '********UPLOAD RESULT INTO TESTRAIL**********'

    railflow(
        testRailServerName: 'TestRail',
        testRailProjectName: 'Railflow Demo',
        failIfUploadFailed: true,
        overriddenUserName: 'userName',
        overriddenPassword: 'password',
        jobConfigurations: [[configurationNames: '''OS/Linux
            Browser/Chrome''',

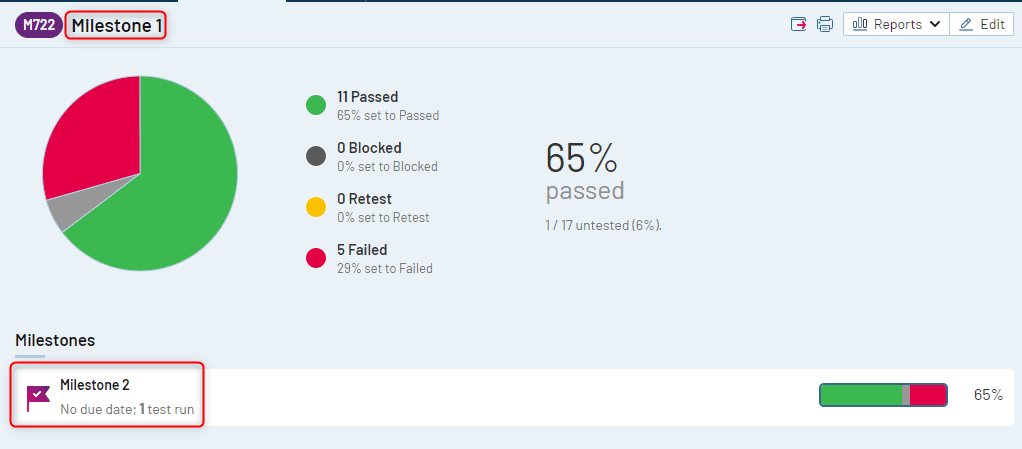

        milestonePath: 'M1/M2',
        resultFilePattern: '**/surefire-reports/*.xml',
        uploadMode: 'CREATE_NO_UPDATE',
        searchMode: 'Path',

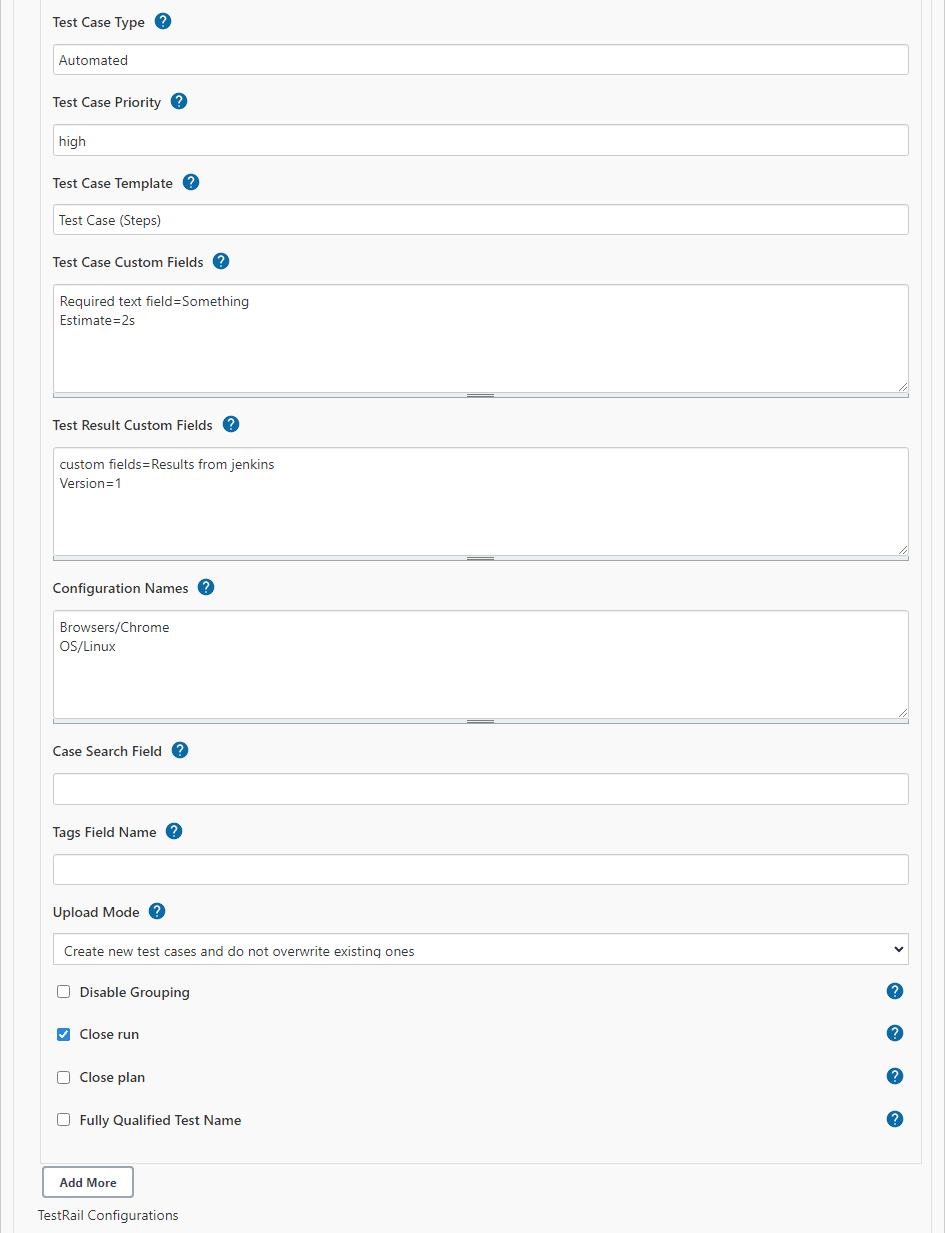

        testCaseCustomFields: '''Required text field=Hello from Jenkins
            estimate=30s''',
        testCasePath: 'Railflow/Website',
        testCasePriority: 'High',
        testCaseType: 'Automated',
        testPlanName: 'Test plan',
        testReportFormat: 'JUNIT',
        testResultCustomFields: '''Custom field=Results from Jenkins
            version=2.0''',
        testRunName: '${JOB_NAME}-${BUILD_NUMBER}'

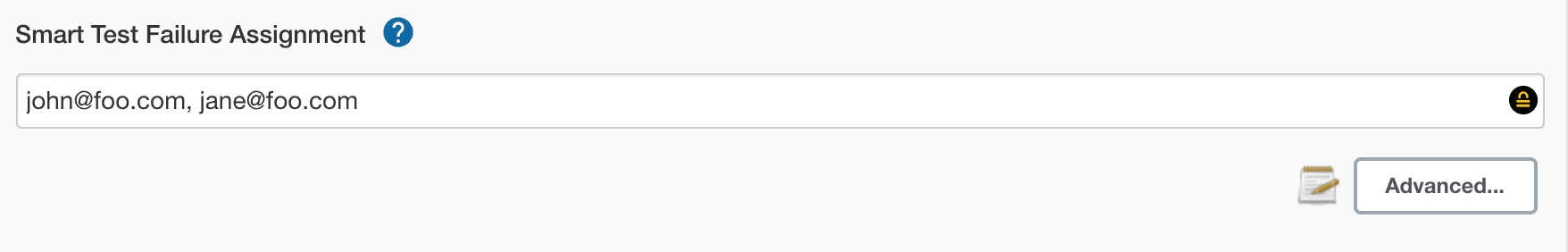

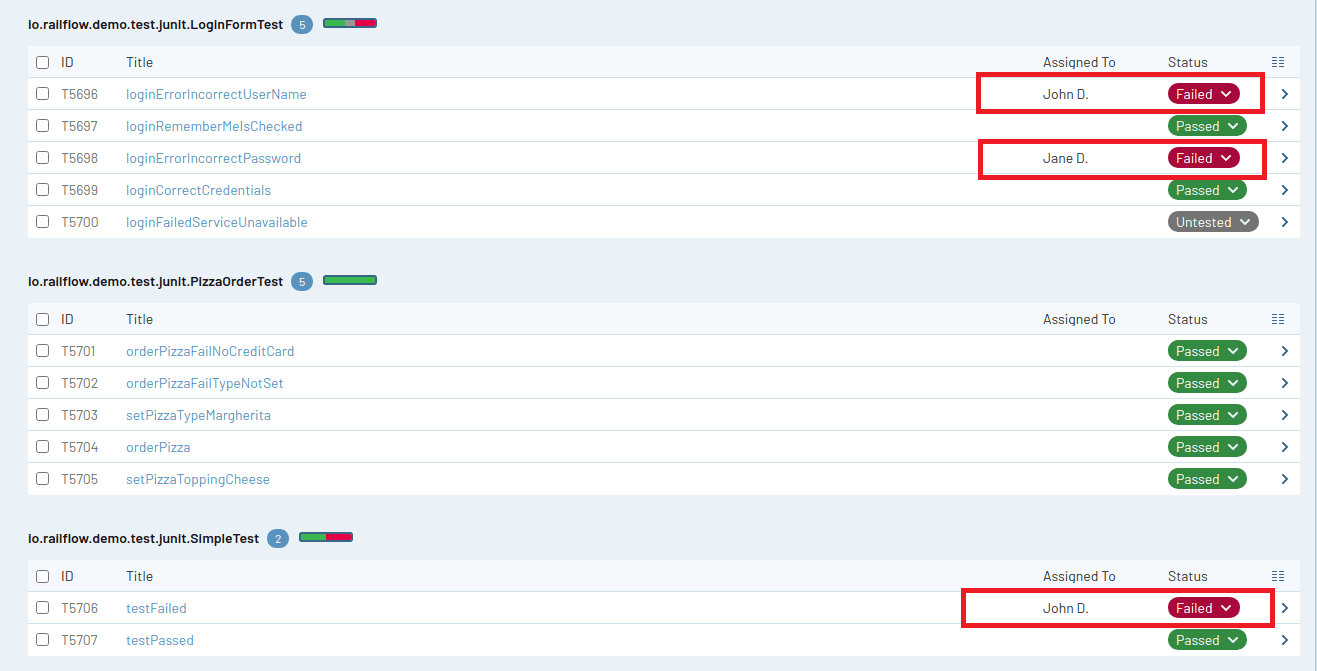

        smartTestFailureAssignment: '[email protected], [email protected]',
        testCaseTemplate: 'template1',
        caseSearchField: 'case search field name',
        tagsFieldName: 'tags field name',
        uploadMode: 'CREATE_NO_UPDATE',
        disableGrouping: true,
        closeRun: true,
        closePlan: true,
        fullCaseNamesAllowed: true ]])
      }
    }
}

npx railflow -k <license key> -url <testrail address> -u <username> -p <password> -pr <project name> -path <suite name>/<section name>/<subsection name> -f junit -r <report files pattern> -sm <search mode> -tp [test plan name] -mp [milestone path]

npx railflow -k ABCDE-12345-FGHIJ-67890 -url https://testrail.your-server.com/ -u testrail-username -p testrail-password -pr "Railflow Demo" -path Master/section1/section2 -f junit -r target/surefire-reports/*.xml -sm path -tr TestRunDemo -tp TestPlanDemo -mp Milestone1/Milestone2 -cn Browsers/Firefox -af assignees.txt

npx railflow -l /home/user/ActivationFile20201020.skm -url https://testrail.your-server.com/ -u testrail-username -p testrail-password -pr "Railflow Demo" -path Master/section1/section2 -f junit -r target/surefire-reports/*.xml -sm path -tr TestRunDemo -tp TestPlanDemo -mp Milestone1/Milestone2 -cn Browsers/Firefox -af assignees.txt

pipeline {
    agent any
    environment {
        RAILFLOW_KEY = credentials('railflow-key')
        TESTRAIL_CREDS = credentials('testrail-creds')
    }
    tools {
        jdk 'default'
        maven 'default'
        nodejs 'default'
    }
    stages {
        stage('Checkout'){
            steps{
                checkout([$class: 'GitSCM', branches: [[name: '*/development']], doGenerateSubmoduleConfigurations: false, extensions: [], submoduleCfg: [], userRemoteConfigs: [[credentialsId: 'git-creds', url: 'https://gitrepo.com/workspace/project.git']]])
            }
        }
        stage('Run unit tests') {
            steps {
                sh 'mvn clean test'
            }
        }
    }
    post{
        always{
            echo "Begin exporting to TestRail"
            sh "npx railflow -k ${RAILFLOW_KEY} -url https://testrail_server/ -u ${TESTRAIL_CREDS_USR} -p ${TESTRAIL_CREDS_PSW} -pr \\\"Railflow Demo\\\" -path Master/section1/section2 -f junit -r target/surefire-reports/*.xml -sm path -tp TestPlan12345 -tr TestRunDemo -tp TestPlanDemo -mp Milestone1/Milestone2 -cf \\\"Required text field=123\\\""
        }
    }
}

pipeline {
   agent any
   environment {
       RAILFLOW_KEY = credentials('railflow-key') // see https://www.jenkins.io/doc/book/pipeline/jenkinsfile/#handling-credentials
       TESTRAIL_CREDS = credentials('testrail-credentials') // see https://www.jenkins.io/doc/book/pipeline/jenkinsfile/#usernames-and-passwords
       TESTRAIL_URL = "https://testrail_server/"
   }
   tools {
       jdk 'default'
       maven 'default'
   }
   stages {
       stage('Checkout') {
           script {
               steps {
                    git branch: 'master', url: 'https://github.com/railflow/testng_example.git'
               }
           }
       }
       stage('Run unit tests') {
           steps {
               script {
                   sh 'mvn clean test'
               }
           }
       }
   }
   post {
       always {
           sh 'docker pull railflow/railflow:latest'
           withDockerContainer('railflow/railflow:latest') {
               sh 'railflow -k ${RAILFLOW_KEY} -url ${TESTRAIL_URL} -u ${TESTRAIL_CREDS_USR} -p ${TESTRAIL_CREDS_PSW} -pr \"Railflow Demo\" -path Demo/Pizza -f testng -r "**/surefire-reports/testng-results.xml" -sm path -tp "Test Plan" -cf \"Required text field=something\"'
           }
       }
   }
}
