Integrating Travis with TestRail
Travis is a very popular commerical SAAS CI applications and is used by thousands of companies to define annd run development and QA pipelines across a variety of testing frameworks and tools like JUnit, Pytest, Selenium, Playwright, etc. While Travis is great at running generic tasks, it is not designed to track, triage, or report on test results across a large number of Travis builds.
Railflow Command Line (CLI) has been designed to seamlessly export a variety of test results reports from Travis Builds to TestRail. Once integrated, TestRail users can use TestRail's powerful dashboard and reporting capabilities, Test Results workflows, and Test Cases Inventory to triage test results that would otherwise be locked up in Travis.
Railflow for Travis provides the following capabilities for TestRail users
Railflow CLI
: To easily integrate Travis workflows with TestRailSmart Failure Assignment
: Ability to auto assign test failure to team membersBDD Reports
: Support for Cucumber, Serenity, and other popular BDD frameworksFramework Reports
: Support for TestNG, JUnit, Pytest, Allure, MSTest, Robot, and others.
Command Line Interface
Node version: 20.x or newer
Railflow Command Line (opens in a new tab) is a NPM based utility that can be run on any Travis setup (Linux, Windows, OSX, and Railflow CLI Docker Image (opens in a new tab))
CLI Reference
Railflow CLI will automatically create tests, runs, plans, milestones, etc. if they do not exist.
Environment Variables:
To avoid exposing sensitive information like TestRail URL, License, username, and password in CLI arguments, users can set the following environment variables: RAILFLOW_LICENSE
, RAILFLOW_TR_URL
, RAILFLOW_TR_USER
, RAILFLOW_TR_PASSWORD
. Railflow CLI will always check these environment variables at run time.
Use double quotes for argument values with spaces. Example: --project "demo project"
Key | Required | Description | Example |
---|---|---|---|
-v, --version | No | Outputs Railflow version number | -v |
-k, --key | -k or -l | (online activation) License key. Can be set with RAILFLOW_LICENSE environment variable | -k XXXXX-XXXXX-XXXXX-XXXXX |
-l, --license-file | -k or -l | (offline activation) File path or remote url license file | -l /files/ActivationFile.skm |
-url, --url | Yes | TestRail instance URL. Can be set with RAILFLOW_TR_URL environment variable | -url https://example.testrail.io (opens in a new tab) |
-u, --username | Yes | TestRail username. Can be set with RAILFLOW_TR_USER environment variable | -u test-username |
-p, --password | Yes | TestRail password or API Key. Can be set with RAILFLOW_TR_PASSWORD environment variable | -p XtpHXiPLEODyhF |
-pr, --project | Yes | TestRail project name | -pr "example project" |
-path, --test-path | Yes | TestRail test cases path | -path "Section1/subsection2/ShoppingCart |
-f, --format | Yes | Report format: JUnit, JUnit-Steps, TestNg, TestNg-Steps, Cucumber, NUnit, NUnit-SpecFlow, Allure, Robot, TRX, xUnit, PyTest-Railflow, Playwright (case insensitive) | -f junit |
-r, --report-files | Yes | The file path(s) to the test report file(s) generated during the build. User can pass multiple values separated with spaces. Ant-style patterns such as **/surefire-reports/*.xml can be used. E.g. use target/surefire-reports/*.xml to capture all XML files in target/surefire-reports directory. | -r target/surefire-reports/*.xml target/failsafe-reports/*.xml |
-sm, --search-mode | Yes | Specifies the test case lookup algorithm. name: search for test case matching the name within the entire test suite. If test case found, update the test case. If test case not found, create a new test case within specified -path path: search for test case matching the name within the specified -path . If test case found, update the test case. If test case not found, create a new test case within specified -path | -sm path |
-px, --proxy | No | HTTP or SOCKS proxy configuration E.g. socks://username:[email protected]:1080 | -px socks://username:[email protected]:1080 |
-t, --timeout | No | Upload timeout (seconds) | -t 10 |
-tr, --test-run | No | TestRail test run name | -tr "Chrome Regression Run" |
-tp, --test-plan | No | TestRail test plan Name | -tp "Shopping Cart Test Plan" |
-mp, --milestone-path | No | TestRail milestone path | -mp Milestone1/Milestone2 |
-cf, --case-fields | No | TestRail test case custom fields. The format is [Field label]=[value] pairs, separated with space. E.g. "Case Field 1=value 1" "Case Field 2=value 2" ... | -cf "Case Field 1=value 1" "Case Field 2=value 2" |
-rf, --result-fields | No | TestRail test result custom fields. The format is [Field label]=[value] pairs, separated with space. E.g. "Result Field 1=value 1" "Result Field 2=value 2" ... | -rf "Result Field 1=value 1" "Result Field 2=value 2" |
-a, --assign | No | Smart Test Failure Assignment. Comma-separated list of TestRail users (email addresses). Railflow will assign failures based on a round robin algorithm. | -a [email protected],[email protected] |
-af, --assign-file | No | Smart Test Failure Assignment. File path containing list of TestRail users (email addresses). Note: One user per line | -af /assignees.txt |
-cn, --config-names | No | TestRail test plan configuration options. Configuration format is: [config_group_name]/[config_name]. E.g. "Operating Systems/Linux" "Browsers/Chrome" ... | -cn "Operating Systems/Linux" "Browsers/Chrome" |
-cr, --close-run | No | If Railflow should close the corresponding run after uploading test results | -cr |
-cp, --close-plan | No | If Railflow should close the corresponding plan after uploading test results | -cp |
-dg, --disable-grouping | No | If Railflow should ignore report structure and just upload all tests into a folder which is set by test-path parameter | -dg |
-tn, --template-name | No | The name of a template to use in TestRail. If it is not set, 'Test Case (Steps)' or the default one will be used | -tn "Test Case (Steps)" |
-cst, --case-type | No | The name of a type for cases | -cst other |
-csp, --case-priority | No | The name of a priority for cases | -csp medium |
-th, --thread-number | No | The number of concurrent threads for exporting data. Default is 4 | -th 8 |
-um, --upload-mode | No | Upload mode. Available values are: 0 (default) - create new test cases and do not overwrite existing ones; 1 - create new cases and overwrite existing ones; 2 - do not create new cases and overwrite existing ones; 3 - do not create new cases and do not overwrite existing ones | -um 1 |
-csf, --case-search-field | No | The name of the case field in TestRail which will be using for searching for existing test cases instead of test case title | -csf "Custom field" |
-ds, --disable-stats | No | If Railflow should disable collecting usage and error logs | -ds |
-fqtn, --fully-qualified-test-name | No | If checked, Railflow will use fully qualified test names from the report files for test names in TestRail | -fqtn |
-us, --untested-status | No | The name of the status to use in TestRail for untested/skipped tests | -us Skipped |
-ams, --attachment-max-size | No | Maximum size of an attachment. Can be set in Gb, Mb, Kb or b. If the unit is not provided considered as Mb. E.g. 1Gb, 2, 20Kb, 3Mb | -ams 1Gb |
-atw, --attachment-type-whitelist | No | The comma-separated list of file extensions which are allowed to upload. E.g. json, .html, .xml | -atw "json, .html, .xml" |
-atb, --attachment-type-blacklist | No | The comma-separated list of file extensions which are not allowed to upload. E.g. json, .html, .xml | -atb "json, .html, .xml" |
-nr, --no-run | No | Do not create or update Test Run in TestRail | -nr |
-tfn, --tags-field-name | No | The name of a test case field which will be holding tags from the report file if any. E.g. Cucumber Tags | -tfn "Cucumber Tags" |
-h, --help | No | Show the help information | -h |
npx railflow -k <license key> -url <testrail address> -u <username> -p <password> -pr <project name> -path <suite name>/<section name>/<subsection name> -f junit -r <report files pattern> -sm <search mode> -tp [test plan name] -mp [milestone path]
npx railflow -k ABCDE-12345-FGHIJ-67890 -url https://testrail.your-server.com/ -u testrail-username -p testrail-password -pr "Railflow Demo" -path Master/section1/section2 -f junit -r target/surefire-reports/*.xml -sm path -tr TestRunDemo -tp TestPlanDemo -mp Milestone1/Milestone2 -cn Browsers/Firefox -af assignees.txt
npx railflow -l /home/user/ActivationFile20201020.skm -url https://testrail.your-server.com/ -u testrail-username -p testrail-password -pr "Railflow Demo" -path Master/section1/section2 -f junit -r target/surefire-reports/*.xml -sm path -tr TestRunDemo -tp TestPlanDemo -mp Milestone1/Milestone2 -cn Browsers/Firefox -af assignees.txt

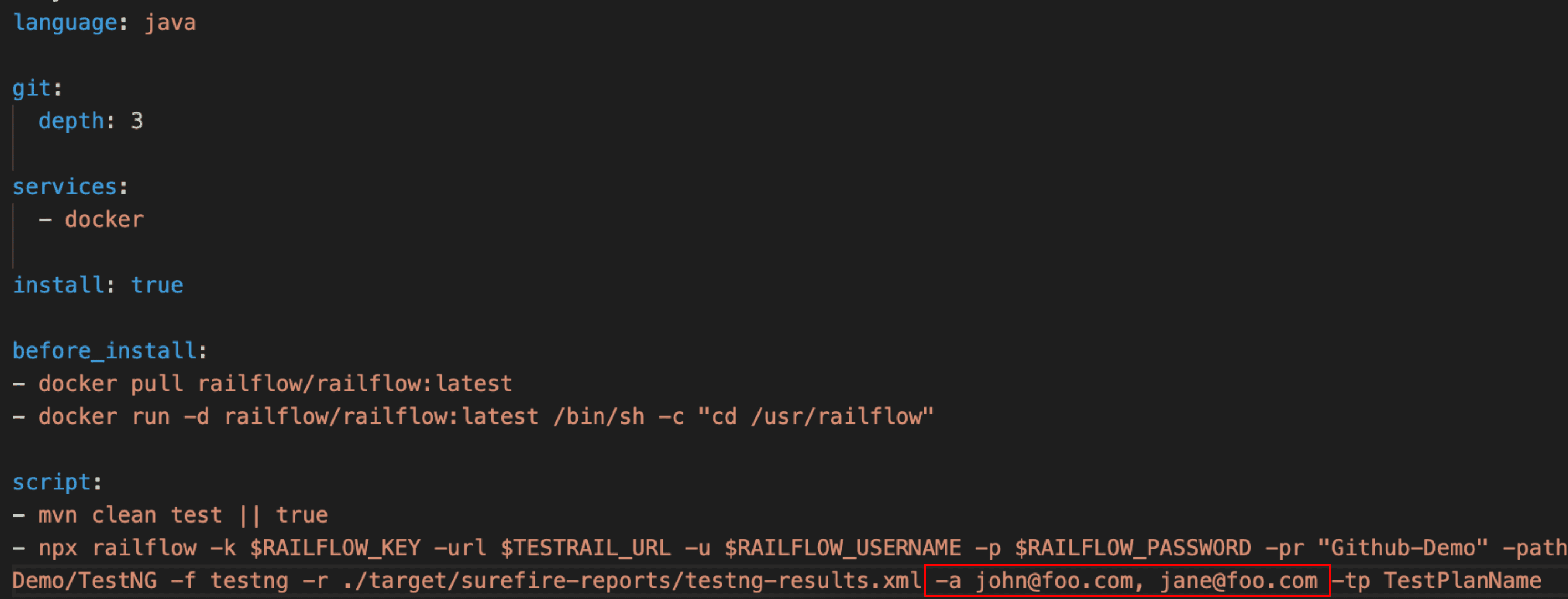

Travis Example
language: java
git:
depth: 3
services:
- docker
install: true
before_install:
- docker pull railflow/railflow:latest
- docker run -d railflow/railflow:latest /bin/sh -c "cd /usr/railflow"
script:
- mvn clean test || true
- npx railflow -k $RAILFLOW_KEY -url $TESTRAIL_URL -u $RAILFLOW_USERNAME -p $RAILFLOW_PASSWORD -pr "Github-Demo" -path Demo/TestNG -f testng -r ./target/surefire-reports/testng-results.xml -sm path -a john@foo.com, jane@foo.com -tp TestPlanName
Railflow Output
Railflow creates a very rich and flexible integration between Circle CI and TestRail. Based on Railflow configuration, TestRail entities can be created or updated automatically as part of your CICD process. The screenshots below shows the output of processing a typical JUnit test framework report.

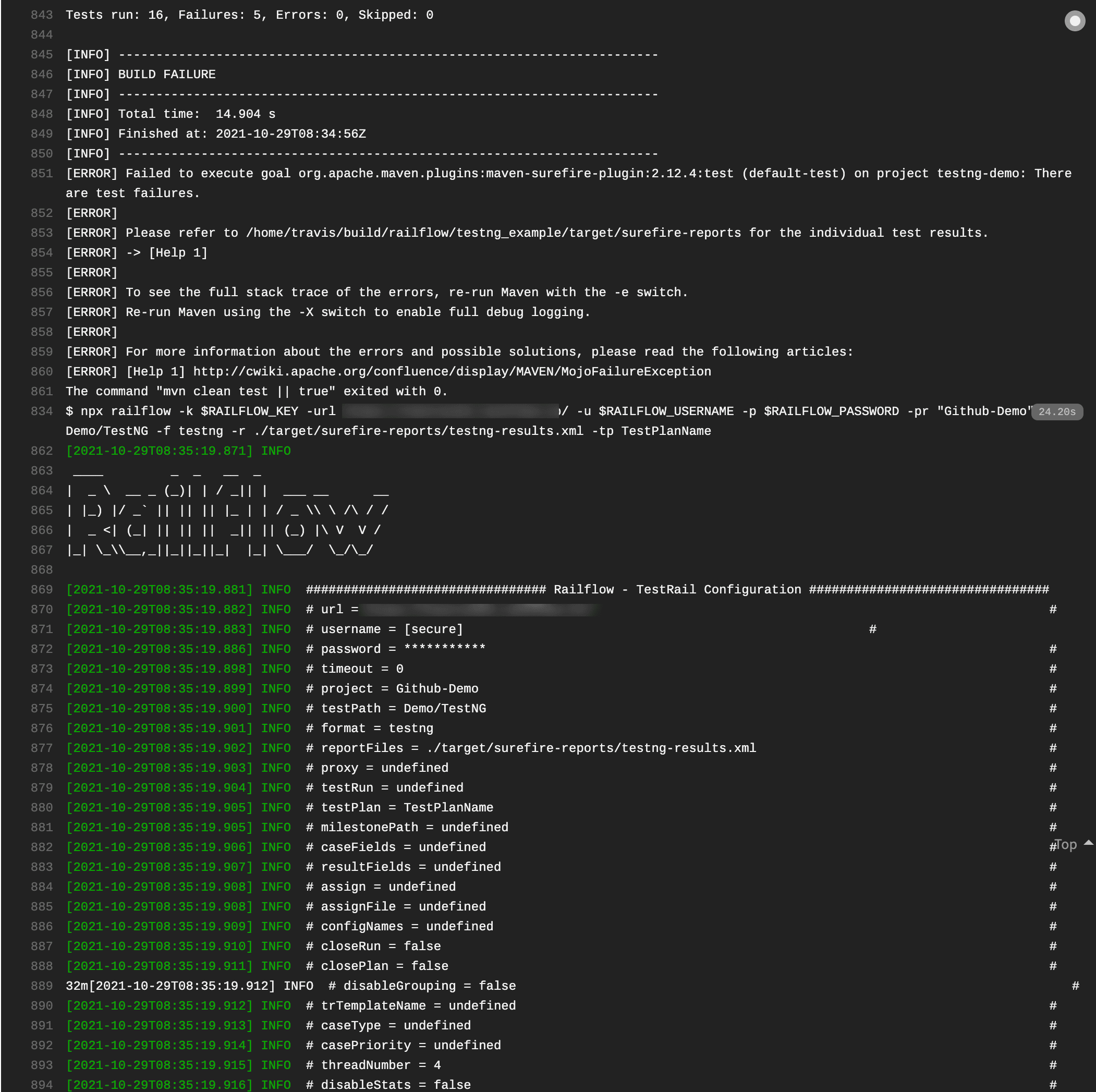

Travis Build Logs
Automatic Test Creation
Automatic Test Plan and Runs
Test Results Details
Automatic Milestones
Smart Failure Assignment
Smart Failure assignment is a very powerful feature of Railflow and allows teams to efficiently and strategically assign test failures to specified team members. Doing this automatically as part of the CI process means that teams don't waste valuable time during the test triage process.
To use Smart Failure Assignment feature, the users need to have Global Role
under Project Access
.
Example
Consider a Travis Selenium Webdriver build is failing with 5 test failures, and 2 users configured in the Smart Test Failure Assignment
field.
Travis Build Logs
In this example above, Railflow's Smart Assignment feature filtered all the test failures and distributed them equally across the specified users. This nifty feature greatly eliminates the manual test triage process and saves teams valuable time.
